ISO 811 High Hydrostatic Head Tester GB/T 4744 Fabric Waterproof Testing Machine

Name: ISO 811 High Hydrostatic Head Tester GBT 4744 Fabric Waterproof Testing Machine
Brand: PERFECT
Price: 1 USD

Quality ISO 811 High Hydrostatic Head Tester GB/T 4744 Fabric Waterproof Testing Machine for sale

Brand Name : PERFECT

Model Number : PT-5025

Certification : ISO, CE, SGS,etc

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 50 Sets Per Month

Delivery Time : 20 Working Days After Confirm Deposit

Packaging Details : Standards Export Wood Case

Standards : DIN-53-886、ISO 811、AATCC 127、GB/T 4744

Measurement Range : 0.001～5kg/cm2 (10～50000mmH2O)

Pressurized Speed : 0.01～1 kg/cm2／min,digital type , free setting

Motor : Servo Motor

Operation Interface : TFT-LCD touch screen controlling

Pressurized Plate : 100cm2

Contact Now

ISO 811 High Hydrostatic Head Tester GB/T 4744 Fabric Waterproof Testing Machine

Application: High Hydrostatic Head Tester provides accurate and fast solution for fiber industry waterproof test requirements , use TFT - LCD touch-screen as operation interface and adopt pneumatic clamping device , convenient to operate.

The pressure speed rate can low as 0.01kg/cm2／min, 0.06kg/cm2／min and up to 1kg/cm2／min, that is, 10cmH2O/min,60cm H2O/min and 1000cm H2O/min.

The max measuring range can be 20000mmH2O and 50000mmH2O

Specification Of High Hydrostatic Head Tester

Measurement Range	0.001～5kg/cm² (10～50000mmH₂O)
Display Precision	± 1%
Pressurized Speed	0.01～1 kg/cm2／min,digital type , free setting
Pressure Holding Test	Seting stop press, and start timing.
Pressure Holding Time	99minutes 59 seconds,can be set,auto stop
Motor	1/2HP Servo Motor
Operation Interface	TFT-LCD touch screen controlling
Clamping Type	empty oil supercharging
Pressurized Plate	ψ112.8mm(100cm2)
Clamp Force	1200kg
Machine Size	42 ×60 ×75cm(W×D×H)
Power	AC 220V 50～60Hz　2A
Noted:It can return to standby immediately, for tesing next time.

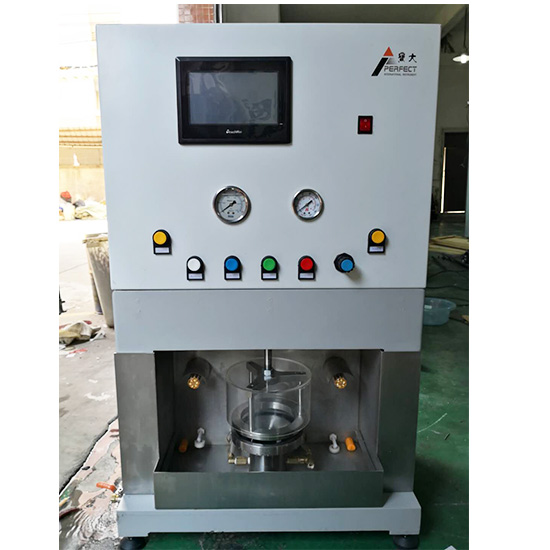

Refer Picture:

ISO 811 High Hydrostatic Head Tester GB/T 4744 Fabric Waterproof Testing Machine

Control Panel :
